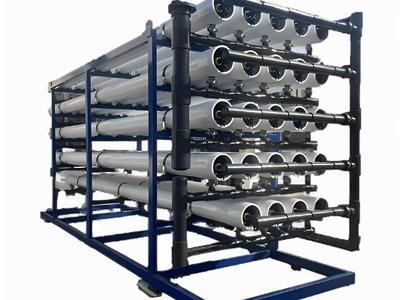

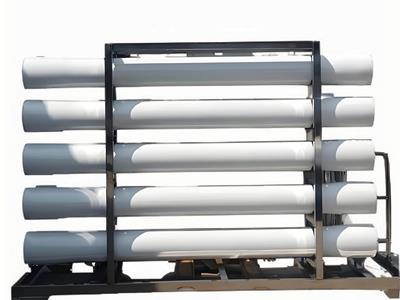

Customizable Industrial Reverse Osmosis Systems

Brackish Water & Seawater Reverse Osmosis System can remove up to 99.5% of salt and contaminants from various impure water sources (such as municipal water, salt water and surface water  ). The system can block bacteria, particles, sugars, proteins, dyes, and impurities with a molecular weight of more than 150-250 Daltons.

Parameter	Brackish Water RO	Seawater RO
Feed Water TDS	1,000 – 10,000 mg/L	30,000 – 45,000 mg/L
Capacity	1 – 500 m³/h	1 – 200 m³/h
Salt Rejection	≥ 98%	≥ 99.5%
Recovery Rate	50 – 75%	30 – 45%
Operating Pressure	8 – 20 bar	55 – 80 bar
Membrane	Dow / Toray / Hydranautics	Dow / Toray
Control System	PLC automatic control	PLC automatic control
Installation	Skid / Containerized	Skid / Containerized

Operating Principle Of Brackish Water & Seawater Reverse Osmosis System

Technical Parameters of Brackish Water & Seawater Reverse Osmosis System For Desalination

• Programmable time delays and set points

• Motor starter

• Stainless steel multistage pump with TEFC motor

• FRP membrane housing

• 5 micron element pre-filter

• 460V/3Ph/60Hz power supply

• Microprocessor based control panel

• NEMA 12 enclosure

• Low pressure switch

• High pressure switch

• Fill pressure gauge

• Permeate conductivity monitor

• Permeate and concentrate flow meters

• Powder coated carbon steel frame

• 8 inch TFC spiral wound membrane

• Hourly automatic flushing

 Available Options:

• Feed/Permeate Blending

• UV Sterilization System

• Water Softener

• Feed or Product pH Monitor with Sensor

• Feed ORP Monitor with Sensor

• Chemical Dosing System

• Media Pre-Filtration System

• Post-Deionization Polisher

• Skid Mount with Pre- or Post-Treatment

• Remote Monitoring

• Feedwater Conductivity Monitor

• Membrane Cleaning Skid

• 220V or 380 - 415V/3 Phase/50Hz

• Product Tank Level Controller Switch

Applications For Brackish Water Reverse Osmosis Equipment

Brackish RO units feature rugged components, 8-inch TFC spiral wound membranes, advanced control panels, Brackish water pumps, and corrosion-resistant components. Brackish RO water filtration systems are ideal for the following applications:

1. EDI pretreatment

2. Rinse water

3. Pharmaceuticals

4. Boiler feed water

5. Laboratory water purification systems

6. Chemical mixing

7. Cooling towers

8. Ion exchange pretreatment

9. Stormwater treatment

10. Well water treatment

11. Food and beverage

12. Ice making

13. Refinery water treatment

14. Nitrate removal from water

15. Electronics/metal finishing

16. Mining

17. Beverage production and bottled water

18. Spot-free product rinse

FupengWater offers a variety of prefabricated and customized Brackish Water RO Systems with a processing capacity ranging from 1–500 m³/h. These energy-efficient Brackish reverse osmosis units can meet the needs and applications of various Brackish water treatments and produce high-quality water at an affordable cost.

Our Brackish Water RO System are designed to produce high-quality water in the most demanding continuous operation and corrosive environments. These reverse osmosis units are first-class systems dedicated to providing the most advanced solutions in the water treatment industry. They also have optional functions, control features and additional devices to facilitate users to customize the reverse osmosis equipment. Whatever your water treatment application needs, our Brackish Water & Seawater Reverse Osmosis System are ideal.

Efficient and safe Brackish water reverse osmosis equipment

Equipment for tap water, brackish water and seawater, equipped with media filters and chemical dosing systems (including pre-chlorination, antiscalant addition, dechlorination, post-chlorination and post-pH adjustment). The equipment is mainly customized according to customer needs and different water treatment applications. Our equipment uses advanced energy-saving membranes and is recognized as one of the most efficient Brackish reverse osmosis systems on the market.

When designing Brackish & Seawater Treatment System, factors such as rugged construction, user-friendly design, environmentally friendly materials and long-term reliability are fully considered.

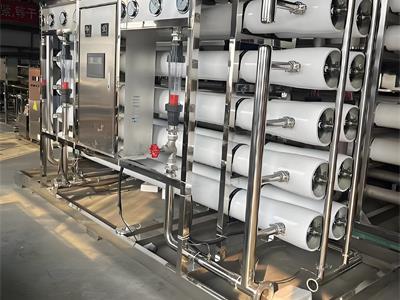

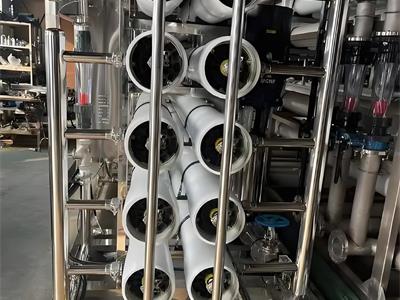

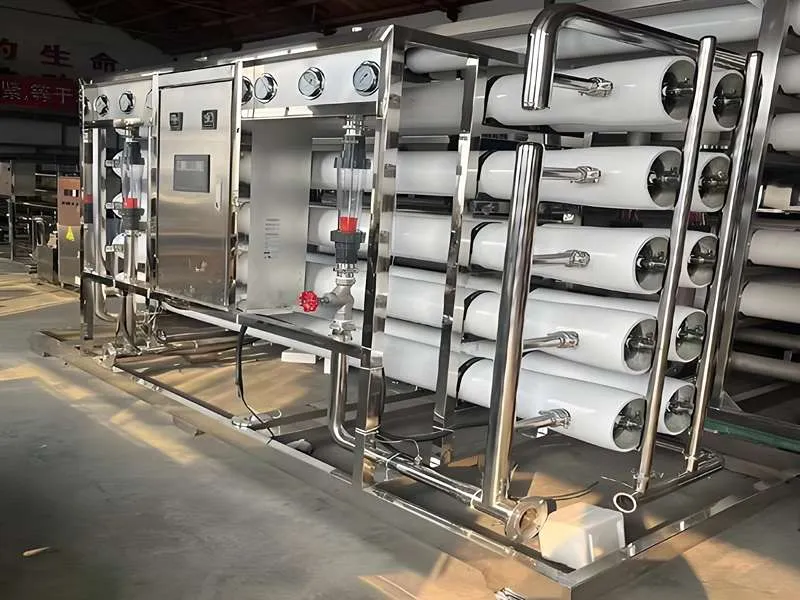

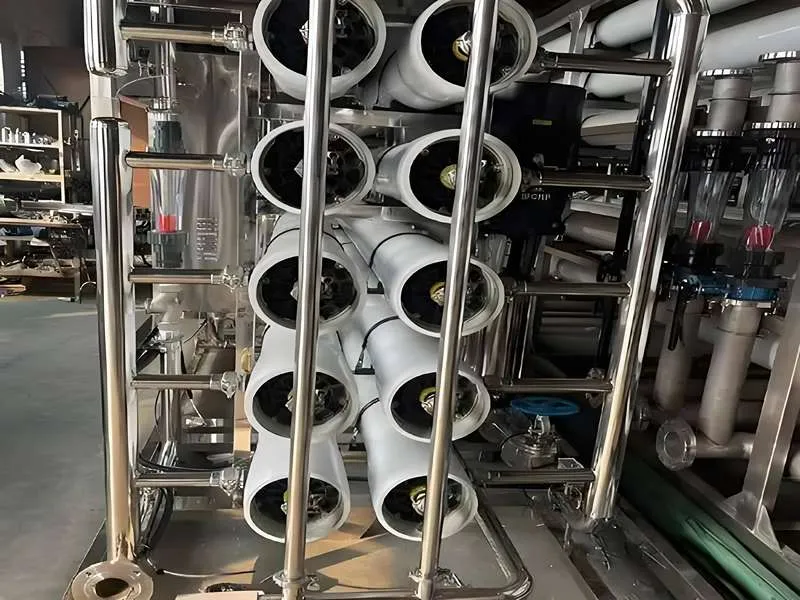

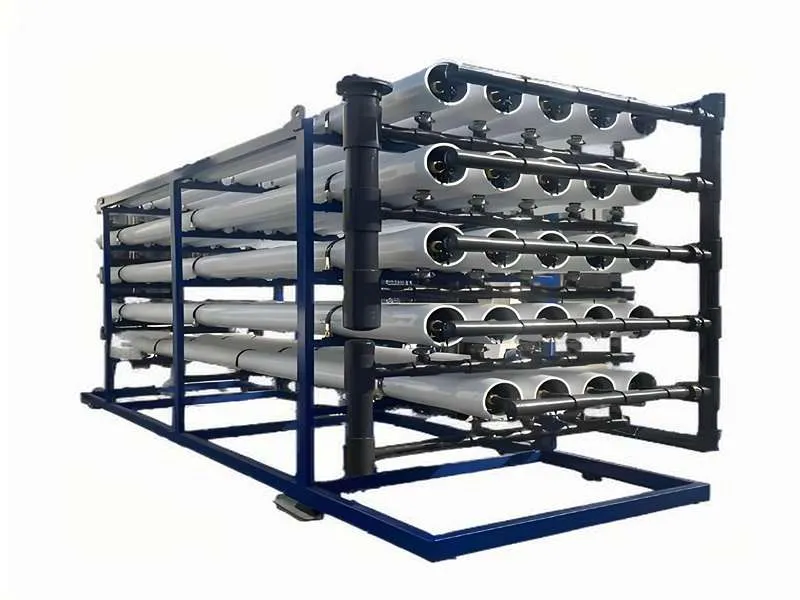

Reverse Osmosis Equipment

Equipment for tap water, brackish water and seawater, equipped with media filters and chemical dosing systems (including pre-chlorination, antiscalant addition, dechlorination, post-chlorination and post-pH adjustment). The equipment is mainly customized according to customer needs and different water treatment applications. Our equipment uses advanced energy-saving membranes and is recognized as one of the most efficient Brackish reverse osmosis systems on the market.

When designing Brackish reverse osmosis systems, factors such as rugged construction, user-friendly design, environmentally friendly materials and long-term reliability are fully considered.

Containerized/Mobile Reverse Osmosis RO Systems

We provide fully containerized/mobile reverse osmosis water treatment systems, which are assembled in containers that meet ISO standards. Each container is customized according to specific water treatment applications and has the characteristics of easy installation and operation, high efficiency, small footprint, energy saving and environmental protection.

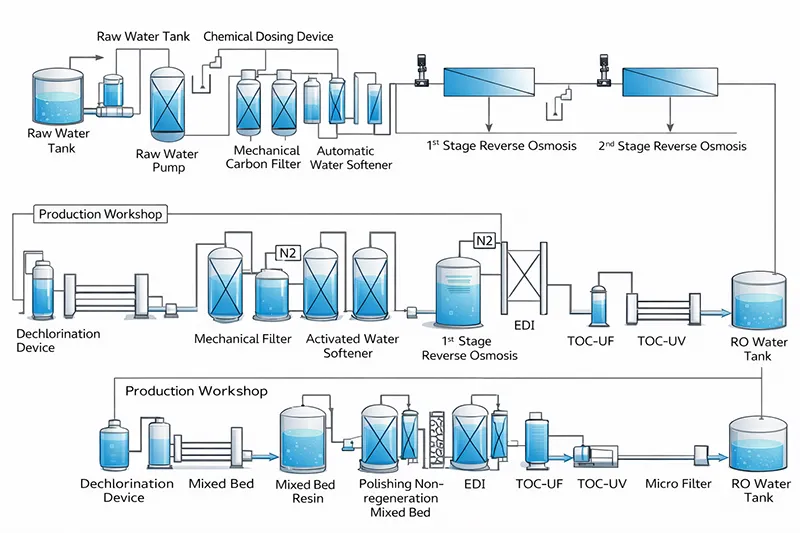

Brackish RO Water Treatment Process

Brackish & Seawater Treatment System includes multi-media pre-filters, water softeners or antiscalant dosing systems, dechlorination dosing systems, reverse osmosis devices with semi-permeable membranes, and ultraviolet disinfection devices or post-chlorination equipment as post-treatment. These RO units use reverse osmosis technology to first send the incoming water to a multimedia pre-filter to remove particles larger than 10 microns. Next, antiscalants are injected into the water to control hardness fouling that can damage the RO unit membrane. These pre-treatment solutions can remove hardness, chlorine, odor, color, iron and sulfur. The water then enters the RO unit, where a high-pressure pump applies extremely high pressure to the highly concentrated solution to separate out the remaining salts, minerals and impurities that the pre-filter failed to capture. Fresh drinking water flows out of the low-pressure end of the membrane, while salts, minerals and other impurities are discharged from the drain at the other end. Finally, the water passes through a UV sterilizer (or post-chlorination) to kill any remaining bacteria and microorganisms in the water.

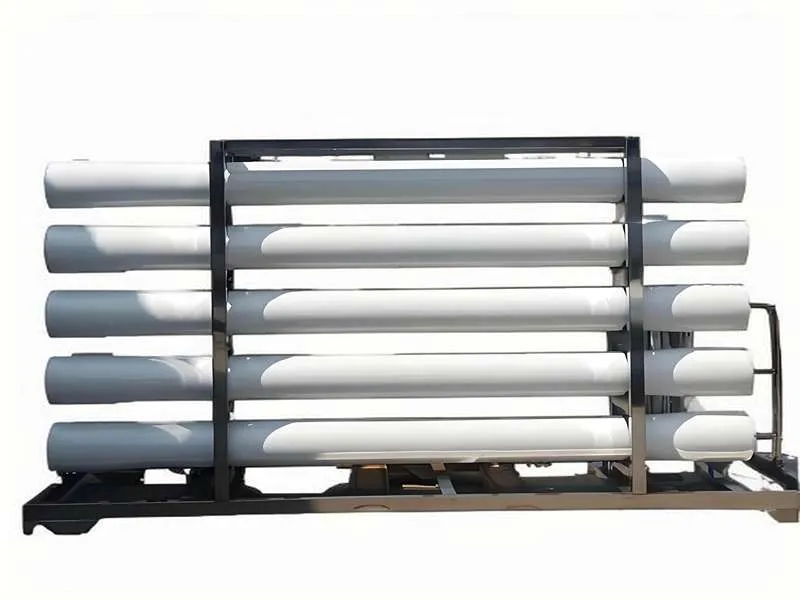

High Capacity Brackish Water RO System

Brackish & Seawater Treatment System are cost-effective and use the latest RO technology to remove dissolved salts, particles, organic matter, minerals, tannins, solids and other impurities from the water. Brackish Water RO System manufacturers use RO membranes as the core separation technology to block these impurities. FupengWater uses products from many of the world's leading Brackish & Seawater Treatment System manufacturers.

As part of our Brackish line, RO units have capacities ranging from 1 – 500 m³/h with feed water total dissolved solids (TDS) concentrations ranging from 900 to 5,000 ppm. These RO units come standard with pre- and post-treatment components. In addition, we offer customization options such as higher feed water TDS, lower water temperatures, future expandability, variable pressure designs with VFDs, BMS system outputs, data logging, and remote monitoring.

If you have any further questions about Reverse Osmosis (RO), please feel free to contact us.
